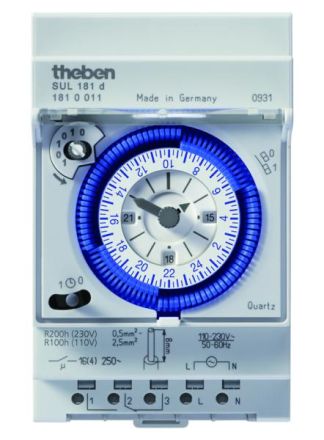

Theben 1814011 SUL 181 d 24V analog timer

In stock

SKU: 389601

Price on request

€110.48

€0

Overview

Series-mounted timer with 200 hours power reserve, 24 hour program, operating voltage 12-24 V UC, shortest switching time 15 min., clock hand for time display and 12h/24h detection, time correction clockwise and anti-clockwise possible, switching preselection, manual switch with 3 positions: permanent ON/AUTO/permanent OFF, switching status display, DuoFix spring plug terminals for 2 conductors each

Property	Value
Width in division units:	3
Number of channels:	1
Protection class (IP):	IP20
24 h program:	yes
Manual operation:	yes
Supply voltage:	12 to 24 V
Mounting type:	DIN rail
Type of supply voltage:	AC/DC
Frequency of supply voltage:	50 to 60 Hz
Shortest switching time channel 1:	15 min
Contact design:	Changeover contact
Power reserve in hours:	200
Accuracy per day:	1 s
Mains synchronous:	no
Weekly program:	no
Rated switching current at 250 V AC:	16 A
Annual program:	no
Quartz-controlled:	yes
Automatic summer/winter time change:	no
Height:	90 mm
Width:	52.5 mm
Depth:	60 mm
Program disc division 1:	15 min
Switching preselection:	yes
Potential-free switching contact:	yes
60 min program:	no
