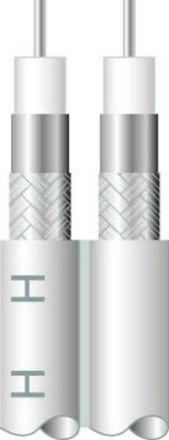

Triax 150009 KOKA 780 Twin 100m ring coaxial cable

In stock
SKU: 1061319
€3.74
Into a basketIn the basketGo

Overview

KOKA 125 HD - for SAT-IF, terrestrial and return channel capable BK/CATV installations, increased shielding requirements, shielding attenuation 125 dB, foil bonded, exceeds class A++, meter markingKOKA 780 Twin Twin coaxial cable, ideal for two separate spur lines from the satellite multiswitch or LNB. Particularly suitable in conjunction with twin satellite sockets such as the EDS 322 F or GAD 404 S, for the independent operation of 2 satellite tuners (e.g. twin satellite receiver), exceeds the requirements of Class A according to EN50117, also ideal for laying in empty pipes when there is little space

Property Value
Statistical commodity number: 85442000
Dielectric: Polyethylene, foamed (Foam PE)
Sheath color: white
Sheath material: Polyvinyl chloride (PVC)
Outer conductor form: Foil + braid
Inner conductor material: Copper
Characteristic impedance: 75 Ohm
Inner conductor diameter: 0.8 mm
Outer conductor diameter: 4.2 mm
Outer conductor material: Copper
Inner conductor class: Class 1 = single wire
Outer diameter approx.: 11 mm
Inner conductor surface: bare
Outer conductor surface: tinned
Fire behavior class according to EN 13501-6: Eca
Smoke development class according to EN 13501-6: without
Drip behavior class according to EN 13501-6: without
Acid development class according to EN 13501-6: without
Min. permissible bending radius, flexible use with forced guidance: 50 mm
Min. permissible bending radius, flexible use/free movement: 50 mm
Min. permissible bending radius, stationary use/fixed installation: 25 mm
Number of shielding layers: 2
Specification of sheath material: other
Brief description: Coaxial cable, 100 m ring, shielding factor 95 dB, Cu 0.8/3.5/2x5.0, double shielded CuSn, class A -

Characteristics

Sheath materialPolyvinyl chloride (PVC)
Outer diameter approx.11 mm
HABKOKA 780 Twin 100m Ring
Minimal order100 pcs
ManufacturerTriax
HAN150009
GTIN5702661500091
Short descriptionCoaxial cable, 100 m ring, shielding 95 dB, Cu 0.8/3.5/2x5.0, double shielded CuSn, Class A -
Coat colorWhite
Statistical commodity code85442000
Triax 150009 KOKA 780 Twin 100m ring coaxial cable
