Triax 151137 Koka F6 PLUS PVC SP100 coaxial cable

In stock

SKU: 538176

Price on request

€0.92

€0

Overview

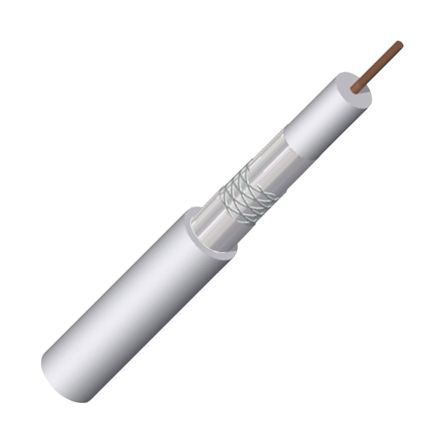

TRIAX KOKA F6 Plus - PVC white, 100 m spool, CCS inner conductor High-quality coaxial cable for television distribution systems for SAT-IF, terrestrial and multimedia applications, low attenuation, excellent shielding properties, durable and reliable, excellent stripping and laying properties, meter marking

Property	Value
Sheath color:	white
Dielectric:	Polyethylene, foamed (Foam PE)
Outer conductor shape:	Foil + braid
Characteristic impedance:	75 Ohm
Inner conductor diameter:	1.05 mm
UV-resistant:	no
Sheath material:	Polyvinyl chloride (PVC)
Inner conductor material:	Iron
Inner conductor class:	Class 1 = single-wire
Outer conductor material:	Aluminum
Reinforcement:	no
Halogen-free according to EN 60754-1/2:	no
Min. permissible bending radius, flexible use with forced guidance:	70 mm
Inner conductor surface:	copper-plated
Outer conductor surface:	bare
Number of shielding layers:	3
Specification of sheath material:	other
Fire behavior class according to EN 13501-6:	Fca
Min. permissible bending radius, flexible use/free movement:	70 mm
Min. permissible bending radius, stationary use/fixed installation:	35 mm
Laying in the ground:	no
