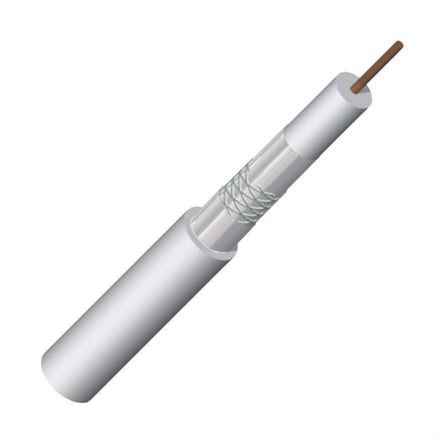

Triax 151141 KOKA F6 Plus PVC (250) coaxial cable

In stock

SKU: 1061338

Price on request

€0.55

€0

Overview

TRIAX KOKA F6 Plus - PVC white, 250 m reel, CCS inner conductor. High-quality coaxial cable for television distribution systems for SAT-IF, terrestrial and multimedia applications. Low attenuation, excellent shielding properties, durable and reliable. Excellent stripping and laying properties.

Property	Value
Weight:	0.05
Weight unit:	KG
Dielectric:	Polyethylene, foamed (Foam PE)
Sheath color:	white
Sheath material:	Polyvinyl chloride (PVC)
Outer conductor form:	Foil + braid
Inner conductor material:	Iron
Characteristic impedance:	75 Ohm
Inner conductor diameter:	1.05 mm
Outer conductor material:	Aluminum
Inner conductor class:	Class 1 = single-wire
Inner conductor surface:	copper-plated
Outer conductor surface:	bare
Fire behavior class according to EN 13501-6:	Fca
Min. permissible bending radius, flexible use with forced guidance:	70 mm
Min. permissible bending radius, flexible use/free movement:	70 mm
Min. permissible bending radius, stationary use/fixed installation:	35 mm
Number of shielding layers:	3
Specification of sheath material:	other
Brief description:	Coaxial cable StaKu, 250 m reel, 110 dB
