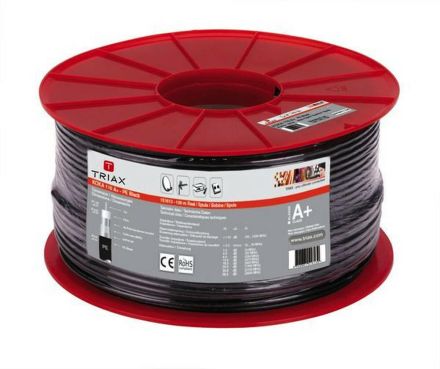

Triax 151613 KOKA 110A+ PVC UV 100m SP black coaxial cable

In stock
SKU: 1061323
€2.21
Into a basketIn the basketGo

Overview

KOKA 110 A+ is a high-quality, UV-resistant, triple-shielded Class A+ cable for the transmission of SAT-IF, terrestrial and multimedia applications in high quality and without LTE interference. The right choice for a clear TV picture without pixels. , Class A+ (EN 50117-2-4) & PE cable (EN 50117-2-5), high-quality materials guarantee a long service life, very reliable even over long distances, LTE protected - thanks to the selected cable structure with tinned copper braid & two layers of foil.KOKA 110 A+, sheath color black, coaxial cable specially developed for multimedia networks with return channel use, ideal for the transmission of SAT-IF, terrestrial and multimedia applications in high quality, extremely good shielding attenuation >, 110 dB, typical 120 dB, exceeds class A+, very good stripping and installation properties, ideal for compression connectors, meter marking, foil glued. CU 1.02/4.6/6.8, triple shielded

Property Value
Weight: 0.06
Weight unit: KG
Dielectric: Polyethylene, foamed (Foam PE)
Sheath color: black
Sheath material: Polyvinyl chloride (PVC)
Outer conductor form: Foil + braid
Inner conductor material: Copper
Characteristic impedance: 75 Ohm
Inner conductor diameter: 1.02 mm
Outer conductor material: Copper
Inner conductor class: Class 1 = single wire
Perm. Cable outside temperature during assembly/handling: -25 - 55 °C
Perm. Cable external temperature after installation without vibration: -40 - 40 °C
Outer diameter approx.: 6.8 mm
UV-resistant: yes
Laying in the ground: yes
Inner conductor surface: blank
Outer conductor surface: tinned
Fire behavior class according to EN 13501-6: Fca
Min. permissible bending radius, flexible use with forced guidance: 70 mm
Min. permissible bending radius, flexible use/free movement: 70 mm
Min. permissible bending radius, stationary use/fixed installation: 35 mm
Number of shielding layers: 3
Specification sheath material: Polyethylene (PE)
Version: 100 m spool
Short description: Coaxial cable for outdoor installation, 100 m coil, 120 dB

Characteristics

Sheath materialPolyvinyl chloride (PVC)
Outer diameter approx.6.8 mm
HABKOKA 110A+ PVC UV 100m SP black
Minimal order100 meters
ManufacturerTriax
HAN151613
GTIN5702661516139
Version100 m spool
Weight0,06
Weight unit kg
Short descriptionCoaxial cable for outdoor installation, 100 m reel, 120 dB
Coat colorBlack
UV-resistantYes
Triax 151613 KOKA 110A+ PVC UV 100m SP black coaxial cable
Triax 151613 KOKA 110A+ PVC UV 100m SP black coaxial cable
