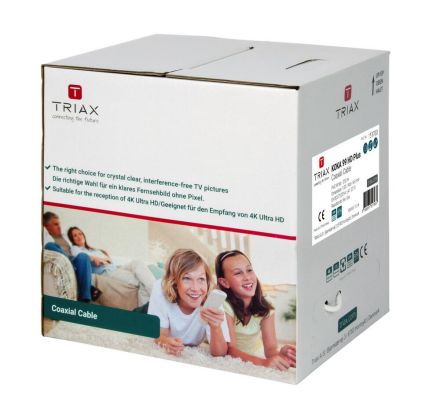

Triax 151703 KOKA 99 HD PLUS PVC 250 pullbox coaxial cable

In stock

SKU: 1061232

Price on request

€1.60

€0

Overview

Fire protection class Eca - DOP TR0009Triple shielded, shield attenuation >100 dB, CU inner conductor 1.02, shielding class A, outer diameter 6.9 mm

Property	Value
Weight:	0.08
Weight unit:	KG
Dielectric:	Polyethylene, foamed (Foam PE)
Sheath color:	white
Sheath material:	Polyvinyl chloride (PVC)
Outer conductor shape:	Foil + braid
Inner conductor material:	Copper
Characteristic impedance:	75 Ohm
Inner conductor diameter:	1.02 mm
Outer conductor diameter:	4.57 mm
Outer conductor material:	other
Inner conductor class:	Class 1 = single wire
Outer diameter approx.:	6.9 mm
UV-resistant:	yes
Inner conductor surface:	bare
Outer conductor surface:	tinned
Fire behavior class according to EN 13501-6:	Eca
Min. permissible bending radius, flexible use with forced guidance:	70 mm
Min. permissible bending radius, flexible use/free movement:	70 mm
Min. permissible bending radius, stationary use/fixed installation:	35 mm
Number of shielding layers:	3
Specification of sheath material:	other
Design:	250 m pull-out box
Brief description:	Coaxial cable, 250 m coil, 110 dB
