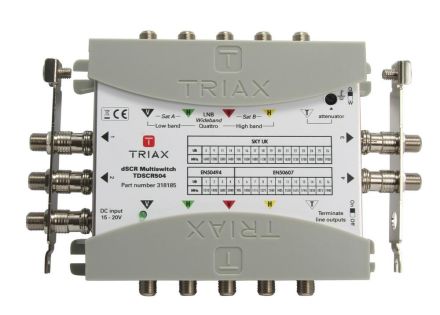

TdSCR 504 - SCR/dCSS Unicable multiswitch. The TdSCR series consists of four Unicable multiswitches with 4, 8, 12 or 16 outputs (TdSCR 504/508/512/516). The Quattro and Wideband compatible devices can be cascaded and are therefore also suitable for the implementation of large multiswitch systems. 4 SCR/dSCR/Legacy outputs with up to 16 user bands per output, cascadable for the implementation of large multiswitch systems - Quattro and Wideband compatible, with Wideband LNB, implementation of 2 satellite positions possible. 1 terrestrial input for feeding in DVB-T2/FM/digital radio, level control for terrestrial signals (0-20 dB), uniform signal distribution with AGC at the outputs (only in SCR/dSCR operation), automatic detection of legacy/dSCR, 1 DC input for power supply with external power supply (not included), 75 self-termination via setting switch (no terminating resistors required), can be used as a cascade, standalone or termination switch, including grounding rails and quick connectors, very low power consumption
