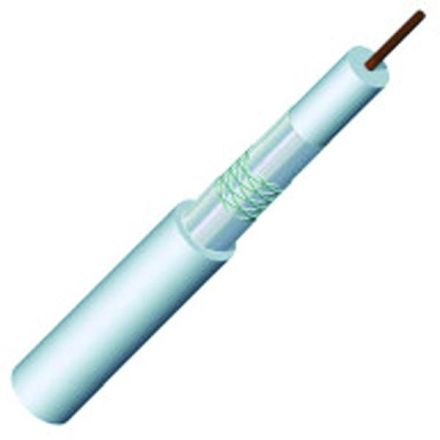

Triax KOKA-99 HD PLUS PVC triple shielded coaxial cable

In stock

SKU: 313497

Price on request

€1.73

€0

Overview

The TRIAX KOKA 99 HD is a triple-shielded coaxial cable for return-channel capable multimedia home distribution networks. High-quality materials and the special cable structure ensure high operational reliability and durability. This cable is designed with an inner conductor made of pure copper (Cu), which offers high performance over long distances. KOKA 99 HD exceeds the requirements of Class A in all areas. Thanks to its high level of shielding, the KOKA 99 HD protects TV signals from external interference.

Property	Value
Sheath color:	white
Outer diameter approx.:	6.9 mm
Dielectric:	Polyethylene, foamed (Foam PE)
Outer conductor shape:	Foil + braid
Characteristic impedance:	75 Ohm
Inner conductor diameter:	1.02 mm
UV-resistant:	yes
Sheath material:	Polyvinyl chloride (PVC)
Outer conductor diameter:	4.57 mm
Inner conductor class:	Class 1 = single-wire
Outer conductor material:	other
Halogen-free according to EN 60754-1/2:	no
Min. permissible bending radius, flexible use with forced guidance:	70 mm
Inner conductor surface:	bare
Outer conductor surface:	tinned
Number of shielding layers:	3
Specification of sheath material:	other
Fire behavior class according to EN 13501-6:	Eca
Min. permissible bending radius, flexible use/free movement:	70 mm
Min. permissible bending radius, stationary use/permanently installed:	35 mm
Laying in the ground:	no
