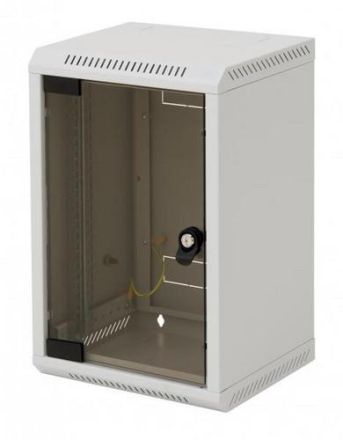

Triton RBA-06-AS3-CAX-C1 one-piece glass door

In stock
SKU: 984270
€134.41
Into a basketIn the basketGo

Overview

The Delta 10” is a one-piece wall-mounted distributor made of a welded steel construction. The lockable front door is glazed as standard. A solid sheet or perforated door can also be supplied on request. Cable entry openings are located in the upper and lower sections. They are provided with removable covers. The distributor contains two vertical 10” strips, the position of which can be adjusted in preset steps. Screws for attaching the housing to the wall. Pack of mounting material. The perforation in the floor and roof ensures natural ventilation. The cabinet has an earthing system Max. load 20 Kg

Feature Value
Color: gray
Number of height units (HE): 6
Height: 337 mm
Width: 310 mm
Depth: 260 mm
Number of doors: 1
Type of ventilation: passive
Protection class (IP): IP20
With front door: yes
Profile rail design: cranked
Material: steel
Can be dismantled: no
RAL number: 7035
With earthing: yes
Surface finish: powder-coated
Mounting level: front
With roof panel: yes
With side walls: no
Design: with fixed frame
Grid dimension: 254 mm (10 inches)
Max. load capacity: 20 kg
Protection class (NEMA): 1

Characteristics

Number of height units (HE)6
ManufacturerTriton Chemnitz
HANRBA-06-AS3-CAX-C1
GTIN8595105040409
VersionWith fixed frame
Surface finishPowder coated
Width310 mm
ColorGray
Height337 mm
RAL number7035
IP protection)IP20
Protection class (NEMA)1
Depth260 mm
MaterialSteel
