Turck 1610038 RU130U-M30E-2UP8X2T-H1151 Ultrasonic reflection sensor

In stock

SKU: 554580

Price on request

€469.41

€0

Overview

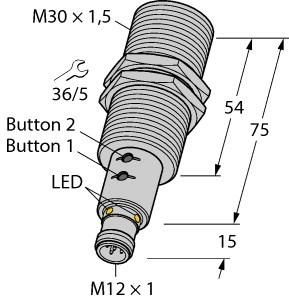

Ultrasonic sensor, reflection sensor, smooth transducer front, cylindrical design M30, encapsulated, connection via M12x1 connector, measuring range adjustable via teach button/easy-teach, temperature compensation, 2x switching outputs, PNP, parameterizable normally open/closed, blind zone: 15cm, range: 130cm, resolution: 1mm, opening angle of the sound cone: 16°, max. range: 1300mm

Property	Value
Sensor diameter:	30 mm
Sensor length:	89 mm
Measuring range length:	150 to 1300 mm
Design of the electrical connection:	Plug connection
Design of the switching output:	PNP
Design of the switching function:	programmable/configurable
Housing design:	cylinder, thread
No-load current:	50 mA
Relative linearity deviation:	0.5 %
Ambient temperature:	-25 to 70 °C
Supply voltage:	15 to 30 V
Relative repeatability:	0.15 %
Switching frequency:	6.9 Hz
Material of the active surface of the sensor:	Plastic
Material of the housing:	other
