Turck 1635527 BI5U-Q12-AN6X2-H1141 Inductive sensor

In stock
SKU: 552505
€86.62
Into a basketIn the basketGo

Overview

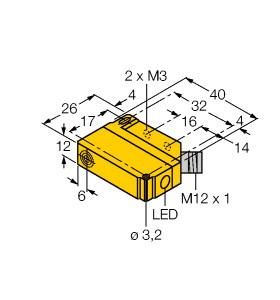

Inductive sensor, cuboid-shaped, height 12mm, active surface on the side, plastic, PBT-GF30-V0, DC 3-wire, 10...30 VDC, normally open, NPN output, connector, M12 x 1, factor 1 for all metals, increased switching distance, protection class IP 68, magnetic field resistant, can be mounted directly on metal, rated switching distance: 5 mm, flush

Property Value
Switching distance: 5 mm
Type of voltage: DC
Design of the switching output: NPN
Mechanical installation condition for Sensor: flush
Width of the sensor: 26 mm
Height of the sensor: 12 mm
Switching function design: normally open
Type of actuation: metallic target
Frequency: 1000 Hz
Length of the sensor: 40 mm
Pressure-resistant: no
Suitable for Safety functions: no
Design of the electrical connection: plug connection
Housing design: cuboid
Supply voltage: 10 to 30 V
Housing material: plastic

Characteristics

Mechanical installation condition for sensorFlush
Design of the switching functionCloser
Supply voltage10 to 30 V
HABBI5U-Q12-AN6X2-H1141
ManufacturerTurck
HAN1635527
GTIN4047101081213
Type of operationMetallic target
Design of the switching outputNPN
Design of the electrical connectionPlug connection
Width of the sensor26 mm
Frequency1000Hz
Suitable for security functionsNo
Housing designCuboid
Height of the sensor12 mm
Length of the sensor40 mm
Switching distance5 mm
Voltage typeDC
Supply voltage10 to 30 V
Housing materialPlastic
Turck 1635527 BI5U-Q12-AN6X2-H1141 Inductive sensor
Turck 1635527 BI5U-Q12-AN6X2-H1141 Inductive sensor
€86.62
Into a basketIn the basketGo
