Turck 40153 NI10-M18-Y1X-H1141 Inductive sensor

In stock

SKU: 553021

Price on request

€76.49

€0

Overview

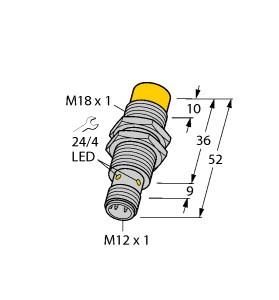

Inductive sensor, ATEX Category II 1 G, Ex Zone 0, ATEX Category II 1 D, Ex Zone 20, SIL2 (Low Demand Mode) according to IEC 61508, PL c according to ISO 13849-1 for HFT0, SIL3 (All Demand Mode) according to IEC 61508, PL e according to ISO 13849-1 for redundant design HFT1, threaded barrel, M18 x 1, chrome-plated brass, DC 2-wire, nom. 8.2 VDC, output according to DIN EN 60947-5-6 (NAMUR), connector M12 x 1, rated switching distance: 10 mm, not flush

Property	Value
Switching distance:	10 mm
Type of voltage:	DC
Design of the switching output:	NAMUR
Mechanical installation condition for sensor:	not flush
Performance level according to EN ISO 13849-1:	Level c
Type of actuation:	metallic target
Frequency:	500 Hz
Length of sensor:	52 mm
Pressure-resistant:	no
Diameter of sensor:	18 mm
Design of electrical connection:	plug connection
Explosion protection category for gas:	ATEX gas explosion protection, cat. 1G
Explosion protection category for dust:	ATEX dust explosion protection, cat. 1D
Housing design:	cylinder, thread
Housing coating:	chrome-plated
Housing material:	metal
SIL according to IEC 61508:	2
