Turck 6625466 RSS8T-10/TXL actuator and sensor cable

In stock
SKU: 554510
€51.21
Into a basketIn the basketGo

Overview

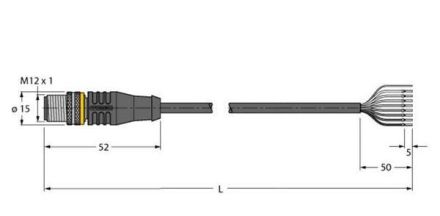

Actuator and sensor cable / PUR, connecting cable, M12 connector, straight, 8-pin, shield applied to union nut/screw, cable length: 10 meters, jacket material: PUR, shielded, jacket color: black, suitable for drag chains, welding spark resistant, chemical, UV and oil resistant, flame retardant, halogen, silicone, PVC and LABS free, particularly abrasion resistant, approval: cULus, RoHS compliant, protection class IP67

Property Value
Rated current In: 2 A
Color of the cable jacket: black
With LED display: no
Cable sheath material: Polyurethane (PUR)
Contact base material: CuZn
Number of poles: 8
Connection, housing side: M12
Plug housing: Male (plug)
Cable feed, housing side: straight
Cable length: 10 m
Contact coating material: Gold
Permissible external cable temperature after installation without vibration: -50 to 80 °C
Permissible external cable temperature during installation/handling: -25 to 80 °C
Rated voltage: 30 V

Characteristics

HABRSS8T-10/TXL
ManufacturerTurck
HAN6625466
GTIN4047106160326
Rated voltage30V
Rated current In2 A
Cable length10m
With LED displayNo
Number of poles8
Turck 6625466 RSS8T-10/TXL actuator and sensor cable
Turck 6625466 RSS8T-10/TXL actuator and sensor cable
€51.21
Into a basketIn the basketGo
