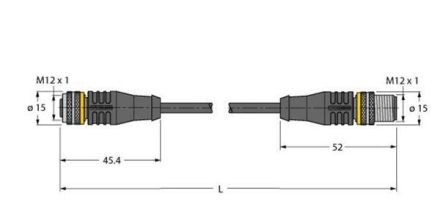

Actuator and sensor cable / PUR, connecting cable, M12 coupling, straight, 4-pin, shield placed on union nut/screw, sheath material: PUR, shielded, sheath color: black, suitable for drag chains, welding spark resistant, chemical, UV and oil resistant, flame retardant, halogen, silicone, PVC and LABS free, particularly abrasion resistant, approval: cULus, RoHS compliant, protection class IP67, cable length 2m, M12 connector, straight, 4-pin
| Property | Value |
| Rated current In: | 4 A |
| Color of the cable sheath: | black |
| With LED display: | no |
| Material of the cable sheath: | Polyurethane (PUR) |
| Material of the contact base: | CuZn |
| Number of poles: | 4 |
| Connection, field side: | M12 |
| Type of plug contact, field side: | Male (plug) |
| Cable feed, field side: | straight |
| Connection, housing side: | M12 |
| Connector housing: | Female (socket) |
| Cable feed, housing side: | straight |
| Cable length: | 2 m |
| Material of the contact coating: | Gold |
| Permissible external cable temperature after installation without vibration: | -50 to 80 °C |
| Permissible Cable external temperature during assembly/handling: | -25 to 80 °C |
| Rated voltage: | 250 V |
