Turck 6627099 PKG3M-0.3-RSC4T/TXL Actuator and sensor cable

In stock

SKU: 553495

Price on request

€16.04

€0

Overview

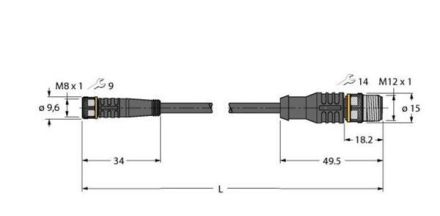

Actuator and sensor cable / PUR, connecting cable, M8 coupling, straight, 3-pin, cable length: 0.3 meters, sheath material: PUR, sheath color: black, suitable for drag chains, welding spark resistant, chemical, UV and oil resistant, flame retardant, halogen, silicone, PVC and LABS free, particularly abrasion resistant, approval: cULus, RoHS compliant, protection class IP67, M12 connector, straight, 3-pin

Property	Value
Rated current In:	4 A
Color of the cable sheath:	black
With LED display:	no
Material of the cable sheath:	Polyurethane (PUR)
Material of the contact body:	CuZn
Number of poles:	3
Connection on the field side:	M12
Type of plug contact, field side:	Male (plug)
Cable feed, field side:	straight
Connection, housing side:	M8
Connector housing:	Female (socket)
Cable feed, housing side:	straight
Cable length:	0.3 m
Shielded:	no
Material of the contact coating:	Gold
Permissible external cable temperature after installation without vibration:	-50 to 80 °C
Permissible Cable external temperature during assembly/handling:	-25 to 80 °C
