Turck 6627250 RKC4.4T-1-RSC4.4T/TXO Actuator and sensor cable

In stock

SKU: 554040

Price on request

€19.33

€0

Overview

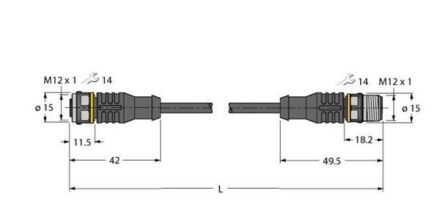

Actuator and sensor cable / PUR, connecting cable, M12 coupling, straight, 4-pin, cable length: 1.0 meter, sheath material: PUR, sheath color: orange, suitable for drag chains, welding spark resistant, chemical, UV and oil resistant, flame retardant, halogen, silicone, PVC and LABS free, particularly abrasion resistant, approval: cULus, RoHS compliant, protection class IP67, M12 connector, straight, 4-pin

Property	Value
Rated current In:	4 A
Color of the cable sheath:	orange
With LED display:	no
Cable sheath material:	Polyurethane (PUR)
Contact body material:	CuZn
Number of poles:	4
Connection on field side:	M12
Type of plug contact, field side:	Male (plug)
Cable feed, field side:	straight
Connection, housing side:	M12
Connector housing:	Female (socket)
Cable feed, housing side:	straight
Cable length:	1 m
Shielded:	no
Material of the contact coating:	Gold
Permissible external cable temperature after installation without vibration:	-50 to 80 °C
Permissible Cable external temperature during assembly/handling:	-25 to 80 °C
Rated voltage:	250 V
