Turck 6627877 PKG3M-2/TXO actuator and sensor cable

In stock

SKU: 553521

Price on request

€12.12

€0

Overview

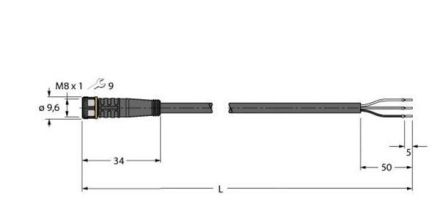

Actuator and sensor cable / PUR, connecting cable, M8 coupling, straight, 3-pin, cable length: 2.0 meters, sheath material: PUR, sheath color: orange, suitable for drag chains, welding spark resistant, chemical, UV and oil resistant, flame retardant, halogen, silicone, PVC and LABS free, particularly abrasion resistant, approval: cULus, RoHS compliant, protection class IP67

Property	Value
Rated current In:	4 A
Color of the cable sheath:	orange
With LED display:	no
Material of the Cable sheath:	Polyurethane (PUR)
Material of the contact base body:	CuZn
Number of poles:	3
Connection, housing side:	M8
Plug housing:	Female (socket)
Cable feed, housing side:	straight
Cable length:	2 m
Shielded:	no
Material of the contact coating:	Gold
Permissible external cable temperature after installation without vibration:	-50 to 80 °C
Permissible external cable temperature during installation/handling:	-25 to 80 °C
