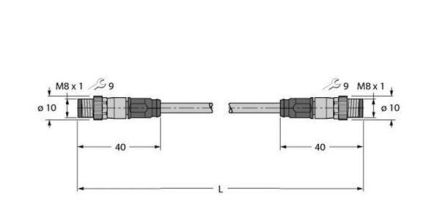

Cable for Industrial Ethernet, PUR cable jacket, M8 connector, straight, Ethernet cable: 4-pin, AWG 26, CAT 5E in accordance with ISO/IEC 11801, EN 50173, EIA/TIA 568-A, jacket material: PUR, jacket color: green, shield: polyester film aluminum laminated, copper braid, jacket diameter: 4.8 mm, suitable for drag chains, UV-resistant, oil-resistant in accordance with IEC 60811-2-1 and DIN0282 Part 10, silicone-, PVC- and LABS-free, halogen-free in accordance with IEC 60754-2, flame-retardant in accordance with IEC 60332-1-2, approval: cULus, RoHS-compliant, protection class IP67, cable length 4m, M8 connector, straight
| Property | Value |
| Rated current In: | 3 A |
| Ambient temperature: | -40 to 80 °C |
| Housing material: | Plastic |
| Pollution level: | 3 |
| Rated voltage: | 42 V |
| Contact coating material: | Gold |
| Housing design: | straight |
| Protection class (IP), mounted: | IP67 |
| Contact type: | Pin |
