Vaillant 000474 safety group below 12.8 bar 3/4 passage

In stock

SKU: 316612

Price on request

€226.87

€0

Overview

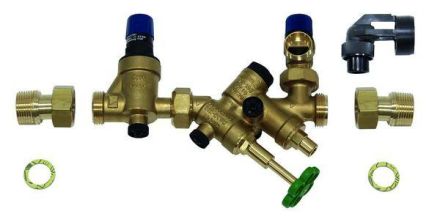

Safety group with pressure reducer for cold water connection and network overpressure below 16 bar, 3/4 passage, for storage capacity 200 l, consisting of: shut-off valve, test nozzle, check valve, diaphragm safety valve R 3/4, pressure reducer and 2 connection screws with R 1 external thread

Property	Value
Surface:	untreated
Connection:	external thread
Material of the housing:	brass
Nominal inner diameter:	3/4 inch (20)
Outer pipe diameter all connections:	26.4 mm
Max. Boiler output:	7.5 kW
Design:	without mixer tap
Article pressure level:	PN 12.5
KIWA test seal:	no
With couplings:	yes
With squeeze set:	no
With siphon:	no
Replaceable reversing flap:	no
Cockpit:	yes
Length of connection 1:	20 mm
Working length of connection 1:	30 mm
Length of connection 2:	20 mm
Working length of connection 2:	30 mm
