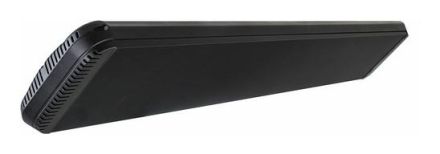

The Vitramo infrared dark radiator VC-A1500 Heating element with a heat-emitting surface made of anodized aluminum Dark radiator from the VC-A series for surface mounting on the ceiling or wall. The max. surface temperature is 360 °C at an ambient temperature of 20 °C. The dark radiator is suitable for surface mounting on the ceiling or wall and can be suspended from ropes. The elements are supplied without a power plug and are equipped with a 1.2 m long connection cable. The heating elements are supplied without a Schuko plug and may therefore only be installed by a specialist. Use in enclosed rooms and in three-sided, covered outdoor areas. For stationary use, for temperature control in closed rooms with a maximum height of 5 m, preferably in living and working environments. The recommended installation height is 2.10 m to a maximum of 2.50 m. For eco-design-compliant operation, these devices must be equipped with an external room temperature control (see Vitramo room temperature control). Technical data: Name: VC-A1500 Installation type: surface-mounted on the wall or ceiling Dimensions (L x W x H): 1100 x 202 x 58 mm Installation height: 95 mm including fastening parts included in delivery Weight: 5.7 kg Temperature: max. 360 °C Voltage: 230 VAC / 50 Hz Power: 1500 W Nominal current: 6.5 A Protection class: I Protection type: IP55 when mounted horizontally Electrical connection: Connection cable ~1.2 meters H05SS-F 3G1.5 Packaging: Carton Dimensions: 1200 x 300 x 150 mm Weight: 6.5 kg PU: 1 piece EAN number: 4250939304595
separate accessories: VITRAMO VC7704 double mounting set for VC-A series side by side VITRAMO VC7705 double mounting set for VC-A series one behind the other VITRAMO VC7706 ceiling spacer for VC-A series
Room temperature control: For a For ecodesign-compliant room temperature control, we recommend two control systems: The room temperature control of the VTX series: The VTX-SP remote control unit and at least one VTX-E or VTX-EU receiver are required for each heating zone. The remote control option can optionally be installed using the VTX-G gateway or the windows in each heating zone can be equipped with window contacts (VTX-FA, VTX-FA-B, VTX-FA-G or VTX-FU). Both options are technically possible. The VTD-UP room thermostat: The heating element is switched directly by the room thermostat, which also measures the room temperature. With the learning function activated, the comfort temperature programmed in the weekly program is reached at the set time because the thermostat adaptively regulates the start of heating.
