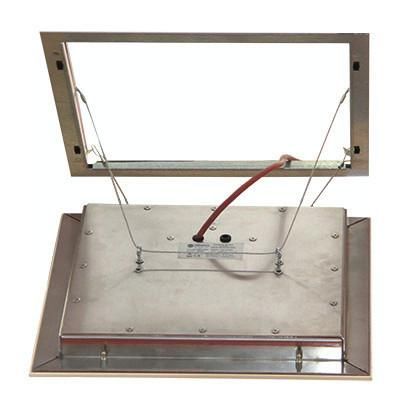

As an infrared heater, the ceiling heating element is used in a fixed location to heat closed rooms in living and working environments. The ceiling infrared heater of the VH-I series is suitable for installation in the ceiling paneling, for example in a plasterboard or wooden ceiling. The effective yet small-format Vitramo ceiling heating element uses radiation to heat walls that enclose the room and the floor in such a way that they only have small temperature differences between them. Only when it comes into contact with the warm surfaces does the room air heat up evenly and almost without flow. This means that the conditions for living comfort are met without unnecessary energy consumption. The ceiling infrared heater of the VH-I series is produced in a sandwich structure. It consists of a single-pane safety glass pane (ESG glass pane made of white glass, low in iron oxide, satin, 5 mm thick, standard surface color white similar to RAL 9010), which is heated on the back by a heating layer that converts electrical energy into heat. This layer is glass fiber reinforced and embedded in a plastic mass. The back is highly thermally insulated and is completed by an aluminum cover that also encloses the sides. Surface temperature max. 190 °C at an ambient temperature of 20 °C. Thanks to the highly effective insulation on the back, ceiling heating elements achieve a very high radiation efficiency in the room. For the mains connection, the heating elements are equipped with a 1.2 m long silicone connection cable without a power plug. For operation as a stationary single-room heater, an additional room thermostat with weekly programming and detection of open windows and/or adaptive control of the start of heating and/or remote control option (outside the building) is required. The Vitramo room thermostat VTD-UP and those of the VTX series control Vitramo ceiling and wall heating elements in accordance with eco-design. Vitramo heating elements may only be installed by a specialist. Vitramo is a leading manufacturer and produces wall and ceiling infrared heaters exclusively in Germany.
