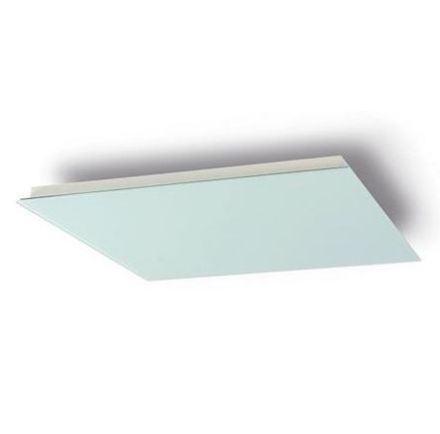

The Vitramo infrared heating element from the VH-I series is suitable for installation in ceiling paneling (e.g. installation in a plasterboard ceiling or wooden ceiling is possible). The VH-I06262 weighs 9.7 kg. The heating element reaches a maximum surface temperature of 190 ° Celsius. The infrared heater is produced in a sandwich construction and consists of a single-pane safety glass pane (ESG glass pane made of white glass, low in iron oxide, satin-finished, 5mm thick, standard surface color white similar to RAL 9010) which is heated on the back by a heating layer that converts electrical energy into heat. This layer is glass fiber reinforced and embedded in a plastic mass. The back is effectively thermally insulated and completed by an aluminum cover that also encloses the sides. For the mains connection, the heating elements are equipped with a plug on the device cover to match the loose connection socket supplied. Vitramo heating elements are supplied without a power plug and may only be installed by a specialist. The heating element is mounted on the ceiling at a minimum distance of 180 cm from the floor. Installation steps: Cut a rectangle out of the ceiling paneling, whereby no cross beams, supporting beams or rafters may be cut off or notched. Make sure that the substructure is 7 cm away from the cutout on one side. Make sure that there is at least 2 cm of free space all around and above the heating element so that the heating element cannot be covered with insulation or similar material when installed. In conjunction with the Vitramo DS-P control unit, the achievable surface temperature of the VH heating elements can be limited. To do this, the Vitramo heating element must be equipped with a sensor that measures the surface temperature. When ordering, simply add the letter S to the respective article name. The infrared heat generated
Manufacturer Vitramo Product type infrared heater Heating output maximum heating output 770 watts Number of heating levels 1 Heating level 770 watts Heating technology with infrared radiation Power supply Operating voltage 230 V Nominal current 3.3 A Suitability & installation Area of application living rooms Installation ceiling mounting Equipment & functions Special feature with installation frame, for installation in the ceiling paneling Housing Housing material safety glass, aluminum Housing properties satin finish Color white Temperature range Surface temperature 190 °C Dimensions & weight Dimensions 61.8 x 61.8 x 4.2 cm Cable length 1.2 m Weight 9.7 kg
