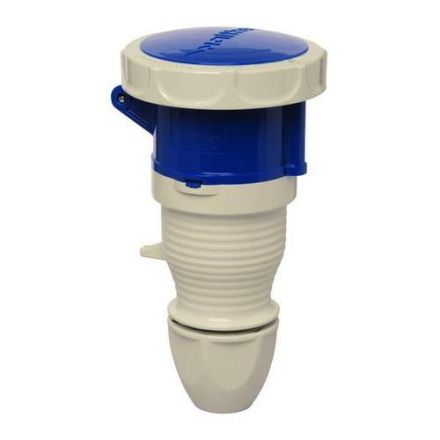

Walther 339306 32A 3P 230V 6h IP67 coupling

Walther 339306 32A 3P 230V 6h IP67 coupling

In stock

SKU: 931472

Price on request

€79.36

€0

Into a basketIn the basketGo

Overview

WALTHER coupling 32A 3P 230V 6h IP67 made of PA6 material with screw connection and external cable gland. Increased safety thanks to injected 2K seal and 2 contact screws.

Property	Value
IEC current:	32 A
UL/CSA current (if UL version required):	30 A
Number of poles:	3
Connection technology:	screw terminal
Plug direction:	straight
Cable entry:	Screw connection
Voltage according to EN 60309-2:	230 V (50+60 Hz) blue
Time setting:	6 h
Identification colour:	blue
Protection class (IP):	IP67
Material:	Plastic
Military version:	no

Characteristics

HAB32A 3P 230V 6h IP67

Manufacturer

HAN339306

GTIN4015609017294

Connection technologyScrew terminal

IEC current32 A

Cable entryScrew connection

Identification colorBlue

Military versionNo

Number of poles3

IP protection)IP67

Voltage according to EN 60309-2230 V (50+60 Hz) blue

Plug directionStraight

UL/CSA current rating (if UL version required)30A

Time position6 hours

MaterialPlastic

Walther 339306 32A 3P 230V 6h IP67 coupling

Walther 339306 32A 3P 230V 6h IP67 coupling

Price on request

€79.36

€0

Into a basketIn the basketGo

Delivery in Europe

We will deliver your order to all European cities.

We are located

8200-121 Albufeira.R. Dr. Diogo Leote 35.

24 hours

We will send the order within 24 hours.
