Walther 469 63A 5P 400V 6h IP67 surface-mounted box

In stock

SKU: 639245

Price on request

€110.98

€0

Overview

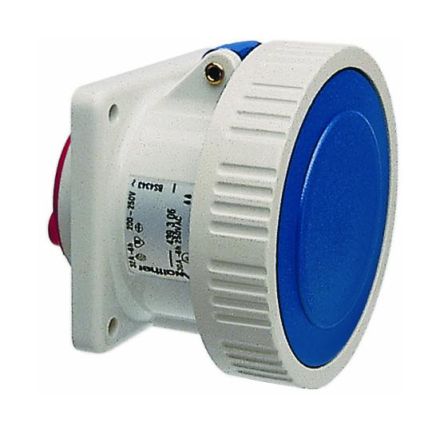

WALTHER panel socket 63A 5P 400V 6h IP67, straight, made of PA6 material, finger-safe according to BGV A3, with soft transition radius from flange to collar, flange size 107x100mm, mounting size 85x77mm

Property	Value
IEC current:	63 A
UL/CSA current (if UL version required):	60 A
Number of poles:	5
Connection technology:	Screw terminal
Plug direction:	straight
Voltage according to EN 60309-2:	400 V (50+60 Hz) red
Time position:	6 h
Identification colour:	red
Protection class (IP):	IP67
Material:	plastic
Military version:	no
Horizontal hole spacing:	77 mm
Vertical hole spacing:	85 mm
Horizontal flange dimension:	100 mm
Vertical flange dimension:	107 mm
Cable entry:	other
Rated voltage:	346 to 415 V
Rated frequency:	60 Hz
