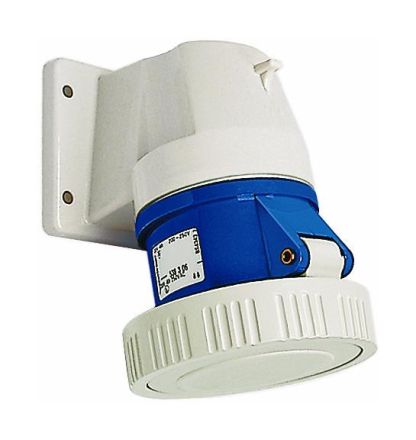

Walther 518306 16A 3P 230V 6h IP67 angled flange housing surface-mounted box

In stock

SKU: 486564

Price on request

€57.47

€0

Overview

WALTHER surface-mounted socket 16A 3P 230V 6h IP67, angled, made of PA6 material, with screwed-on flange housing, flange dimensions 52x65mm, fastening dimensions 30x55mm

Property	Value
IEC current:	16 A
UL/CSA current (if UL version required):	20 A
Number of poles:	3
Connection technology:	screw terminal
Plug direction:	angled
Voltage according to EN 60309-2:	230 V (50+60 Hz) blue
Time setting:	6 h
Identification colour:	blue
Protection class (IP):	IP67
Material:	Plastic
Military version:	no
Horizontal hole spacing:	55 mm
Hole spacing vertical:	30 mm
Flange dimension horizontal:	65 mm
Flange dimension vertical:	52 mm
Cable entry:	other
Rated voltage:	250 V
Rated frequency:	60 Hz
