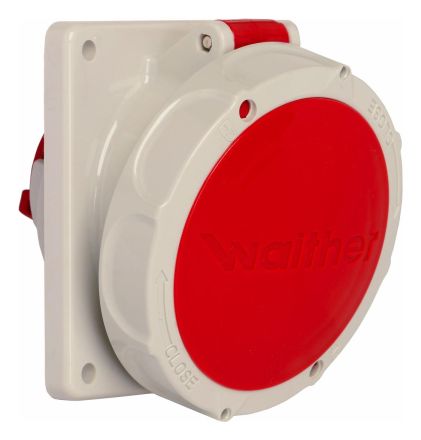

Walther 569504 63A 5P 110V 4h IP67 surface-mounted box

In stock

SKU: 486487

Price on request

€122.06

€0

Overview

WALTHER surface-mounted socket 63A 5P 110V 4h IP67, angled, made of PA6 material, finger-safe according to BGV A3, with soft transition radius from flange to collar, flange dimensions 107x100mm, mounting dimensions 85x77mm

Property	Value
IEC current:	63 A
UL/CSA current (if UL version required):	60 A
Number of poles:	5
Connection technology:	Screw terminal
Plug direction:	angled
Voltage according to EN 60309-2:	110 V (50+60 Hz) yellow
Time setting:	4 h
Identification color:	yellow
Protection class (IP):	IP67
Material:	Plastic
Military version:	no
Horizontal hole spacing:	77 mm
Vertical hole spacing:	85 mm
Horizontal flange dimension:	100 mm
Vertical flange dimension:	107 mm
Cable entry:	other
Rated voltage:	100 to 130 V
Rated frequency:	60 Hz
