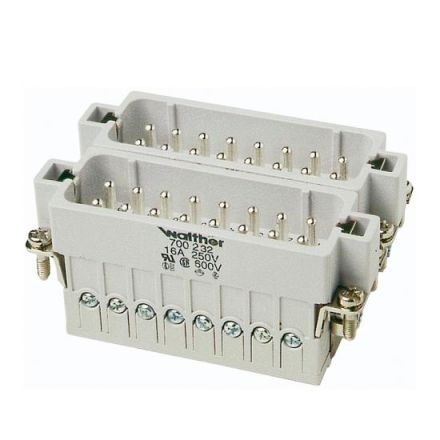

Walther 700232 32-pin pin insert

In stock

SKU: 486024

Price on request

€13.31

€0

Overview

WALTHER pin insert, series A32, with screw connection, and wire protection, connection cross-section 0.5-2.5qmm (20-14 AWG)

Property	Value
Number of poles:	32
Rated current In:	16 A
Rated impulse voltage:	4 kV
With protective conductor:	yes
Connectable conductor cross-section, stranded:	0.5 to 2.5 mm²
Material of the connector insert:	Thermoplastic
Rated voltage:	230 V
Overvoltage category:	III
Contact design:	Pin
Pollution level:	3
Material of the contact:	Other copper alloys
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.5 to 2.5 mm²
Contact insert without Contacts:	no
Material of the contact coating:	silver
Design of the electrical connection:	screw connection
With wire protection:	yes
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	other
Number of power contacts:	16
Operating temperature:	-40 to 125 °C
Min. number of mating cycles:	500
Width:	72 mm
Height:	36 mm
Depth:	23 mm
