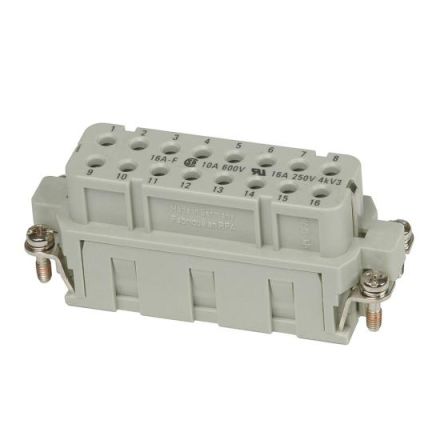

Walther 700316 A16 contact carrier

In stock

SKU: 485909

Price on request

€20.24

€0

Overview

WALTHER crimp contact carrier, series A16, contact carrier for socket contacts

Property	Value
Number of poles:	16
Rated current In:	16 A
Rated impulse voltage:	4 kV
With protective conductor:	no
Connectable conductor cross-section, stranded:	0.14 to 4 mm²
Material of the connector insert:	Thermoplastic
Rated voltage:	230 V
Overvoltage category:	III
Contact design:	socket
Pollution level:	3
Contact material:	other copper alloys
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.14 to 4 mm²
Contact insert without contacts:	yes
Material of the contact coating:	Silver
Design of the electrical connection:	Crimp connection
With wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	other
Operating temperature:	-40 to 125 °C
Min. Number of mating cycles:	500
Width:	73 mm
Height:	30 mm
Depth:	23 mm
