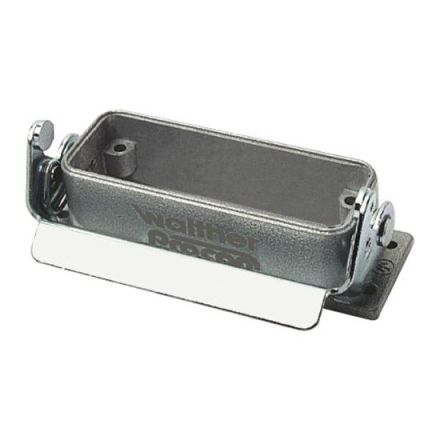

Walther 704316 16-pin panel mount housing

In stock

SKU: 485881

Price on request

€13.27

€0

Overview

WALTHER surface-mounted housing, die-cast aluminum housing, height 26mm, with longitudinal locking bracket made of galvanized steel, protection class: IP65, for the A16 and D25 series, mounting cutout 74x24mm

Property	Value
Width:	96 mm
Height:	26 mm
Housing design:	surface-mounted housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable entry arrangement:	top
Locking type:	Longitudinal bracket
With hinged lid:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	yes
Housing material:	Aluminium
Flammability class of the insulating material according to UL 94:	V0
Housing coating:	powder-coated
Bracket position:	Bottom section
Depth:	30 mm
Housing colour:	grey
With nozzle:	no
With seal:	yes
