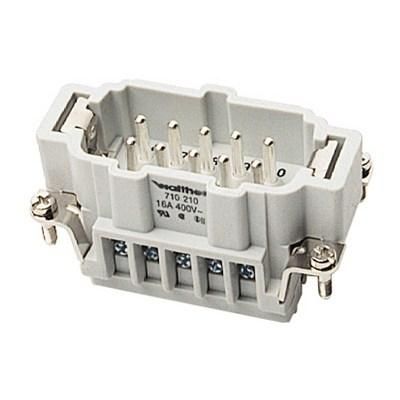

Walther 710210 10-pin pin insert

In stock

SKU: 486622

Price on request

€9.64

€0

Overview

WALTHER pin insert, series B10, with screw connection, and wire protection, connection cross-section 0.5-2.5qmm (20-14 AWG)

Property	Value
Number of poles:	10
Rated current In:	16 A
Rated impulse voltage:	6 kV
With protective conductor:	yes
Connectable conductor cross-section stranded:	2.5 mm²
Material of Connector insert:	Thermoplastic
Rated voltage:	500 V
Overvoltage category:	III
Contact design:	Pin
Pollution level:	3
Material of the contact:	Other copper alloys
Connectable conductor cross-section, fine-stranded without wire end ferrule:	2.5 mm²
Contact insert without contacts:	no
Material of the contact coating:	Silver
Design of the electrical connection:	Screw connection
With wire protection:	yes
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	other
Number of power contacts:	10
Operating temperature:	-40 to 125 °C
Min. number of mating cycles:	500
Width:	64 mm
Height:	35 mm
Depth:	34 mm
