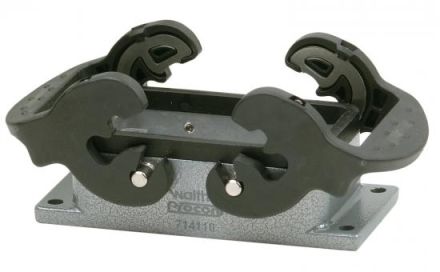

Walther 714110 10-pin panel mount housing

In stock
SKU: 485781
€14.88
Into a basketIn the basketGo

Overview

WALTHER surface-mounted housing, die-cast aluminum housing, height 28mm, with plastic cross-locking brackets, protection class: IP65, for the B10, BB18, DD42 and MOB10 series, mounting cutout 65x35mm

Property Value
Width: 93 mm
Height: 29 mm
Housing design: surface-mounted housing
Protection class (IP), mounted: IP65
Operating temperature: -40 to 125 °C
Cable entry arrangement: top
Locking type: cross bar
With hinged lid: no
Corrosion-resistant: yes
With cable gland: no
UV-resistant: yes
Housing material: aluminium
Flammability class of the insulating material according to UL 94: V0
Housing coating: powder-coated
Bracket position: lower part
Depth: 57 mm
Housing colour: grey
With nozzle: no
With seal: yes

Characteristics

HAB714110 10-pin
ManufacturerWalther
HAN714110
GTIN4015609030705
Housing coatingPowder coated
Operating temperatur-40 to 125 °C
Width93 mm
Flammability class of the insulating material according to UL 94V0
Housing colorGray
Height29 mm
With hinged lidNo
Depth57 mm
UV-resistantYes
Housing materialAluminum
Walther 714110 10-pin panel mount housing
Walther 714110 10-pin panel mount housing
€14.88
Into a basketIn the basketGo
