Walther 714224 24-pin mounting housing

In stock

SKU: 485886

Price on request

€19.83

€0

Overview

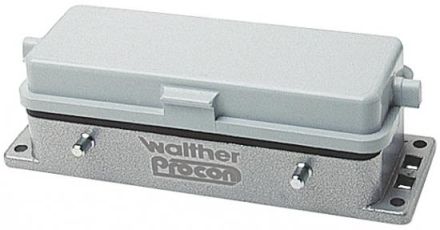

WALTHER surface-mounted housing, die-cast aluminum housing, height 28mm, with cross-locking cams and plastic hinged cover, protection class: IP65, for the B24, BB46, D64, DD108 and MOB24 series, mounting cutout 112x35mm

Property	Value
Width:	166 mm
Height:	29 mm
Housing design:	surface-mounted housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	top
Locking type:	Cross bar
With hinged lid:	yes
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	yes
Housing material:	Aluminum
Flammability class of the insulating material according to UL 94:	V0
Housing coating:	powder-coated
Bracket position:	without
Depth:	57 mm
Housing color:	grey
With nozzle:	no
With seal:	yes
