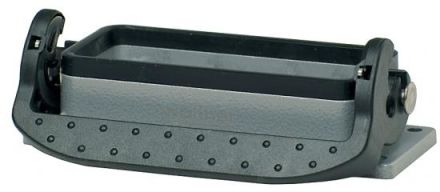

Walther 714306 6-pin with seal mounting housing

In stock

SKU: 486638

Price on request

€9.96

€0

Overview

WALTHER surface-mounted housing, die-cast aluminum housing, height 28mm, with longitudinal locking bracket made of plastic, protection class: IP65, for the series B6, BB10, DD24 and MOB6, mounting cutout 52x35mm

Property	Value
Width:	80 mm
Height:	27 mm
Housing design:	surface-mounted housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable entry arrangement:	top
Locking type:	Longitudinal bracket
With hinged lid:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	yes
Material of the housing:	Aluminium
Flammability class of the insulating material according to UL 94:	V0
Housing coating:	powder-coated
Bracket position:	Bottom section
Depth:	43 mm
Housing color:	grey
With nozzle:	no
With seal:	yes
