Walther 714348 48-pin mounting housing

In stock

SKU: 485883

Price on request

€49.53

€0

Overview

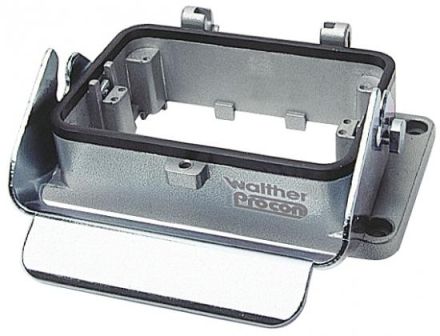

WALTHER surface-mounted housing, die-cast aluminum housing, height 41mm, with longitudinal locking bracket made of galvanized steel, protection class: IP65, for the series B48, BB92, D128, DD216 and 2x MOB24, mounting cutout 120x82mm

Property	Value
Width:	165 mm
Height:	41 mm
Housing design:	surface-mounted housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	top
Locking type:	Longitudinal bracket
With hinged lid:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	yes
Housing material:	Aluminum
Flammability class of the insulating material according to UL 94:	V0
Housing coating:	powder-coated
Bracket position:	lower part
Depth:	90 mm
Housing color:	grey
With nozzle:	no
With seal:	yes
