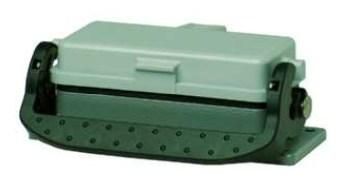

Walther 714410 10-pin panel mount housing

In stock

SKU: 485884

Price on request

€20.10

€0

Overview

WALTHER surface-mounted housing, die-cast aluminum housing, height 28mm, with longitudinal locking bracket and plastic hinged cover, protection class: IP65, for the B10, BB18, DD42 and MOB10 series, mounting cutout 65x35mm

Property	Value
Width:	93 mm
Height:	29 mm
Housing design:	surface-mounted housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	top
Locking type:	Longitudinal bracket
With hinged lid:	yes
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	yes
Housing material:	Aluminium
Flammability class of the insulating material according to UL 94:	V0
Housing coating:	powder-coated
Bracket position:	lower part
Depth:	43 mm
Housing color:	grey
With nozzle:	no
With seal:	yes
