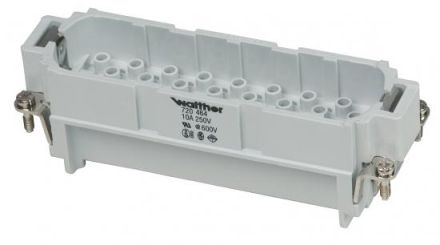

Walther 720464 contact carrier

In stock
SKU: 485903
€12.75
Into a basketIn the basketGo

Overview

WALTHER crimp contact carrier, series D64, contact carrier for pin contacts

Property Value
Number of poles: 64
Rated current In: 10 A
Rated impulse voltage: 4 kV
With protective conductor: no
Connectable conductor cross-section, stranded: 0.14 to 2.5 mm²
Material of the connector insert: Thermoplastic
Rated voltage: 250 V
Overvoltage category: III
Contact design: pin
Pollution level: 3
Contact material: other copper alloys
Connectable conductor cross-section, fine-stranded without wire end ferrule: 0.14 to 2.5 mm²
Contact insert without contacts: yes
Material of the contact coating: Silver
Design of the electrical connection: Crimp connection
With wire protection: no
Flammability class of the insulating material according to UL 94: V0
Material of the contact insert: other
Operating temperature: -40 to 125 °C
Min. Number of mating cycles: 500
Width: 110 mm
Height: 36 mm
Depth: 34 mm

Characteristics

Rated surge voltage4 kV
HAB720464
ManufacturerWalther
HAN720464
GTIN4015609031566
Connectable conductor cross-section stranded0.14 to 2.5 mm²
Design of the electrical connectionCrimp connection
Rated voltage250V
Rated current In10A
Operating temperatur-40 to 125 °C
Width110 mm
Flammability class of the insulating material according to UL 94V0
Height36 mm
Number of poles64
Depth34 mm
Degree of contamination3
Overvoltage categoryIII
