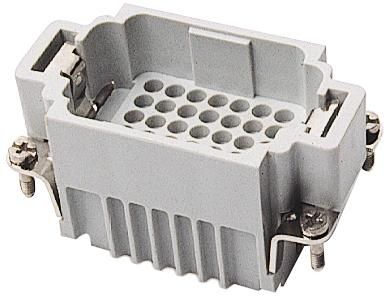

Walther 750242 42-pin crimp contact carrier

In stock

SKU: 485905

Price on request

€15.18

€0

Overview

WALTHER crimp contact carrier, series DD42, contact carrier for pin contacts

Property	Value
Number of poles:	42
Rated current In:	10 A
Rated impulse voltage:	4 kV
With protective conductor:	yes
Connectable conductor cross-section, stranded:	0.14 to 2.5 mm²
Material of the connector insert:	Thermoplastic
Rated voltage:	250 V
Overvoltage category:	III
Contact design:	pin
Pollution level:	3
Contact material:	other copper alloys
Connectable conductor cross-section, fine-stranded without wire end ferrule:	0.14 to 2.5 mm²
Contact insert without contacts:	yes
Material of the contact coating:	Silver
Design of the electrical connection:	Crimp connection
With wire protection:	no
Flammability class of the insulating material according to UL 94:	V0
Material of the contact insert:	other
Operating temperature:	-40 to 125 °C
Min. Number of mating cycles:	500
Width:	64 mm
Height:	35 mm
Depth:	34 mm
