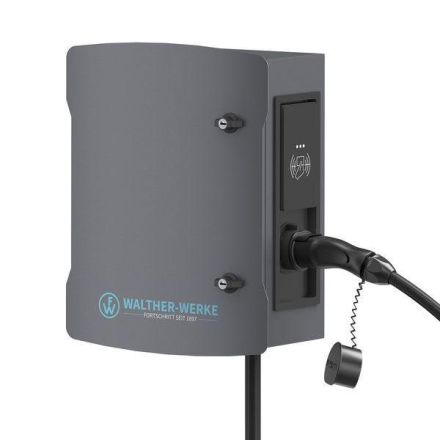

Wallbox smartEVO 22 Features: Charging according to Mode 3 according to IEC 61851 Plugs according to IEC 62196 1x charging cable with 7.5m cable length Type 2 charging coupling Charging power up to 22kW 3 status LEDs in the side panel to display the current status of the charging point Authentication via side-mounted RFID panel Powerline Communication (PLC) according to ISO 15118 enables Plug & Charge and bidirectional communication with the vehicle. Connection to energy management systems (EMS) EEBUS communication protocol Connection to SMA communication protocol and TQ energy management Integrated web server Update firmware version as well as control/maintenance via remote access. Ethernet interface including AMJ module for connection to permanently installed data cable Smart grid capability through OCPP 1.5 & 1.6 (JSON & SOAP) Local dynamic load management (DLM) including unbalanced load detection (phase-accurate control) for efficient use of the available charging power with up to 250 charging points Assignment of master and slave charging points possible via the configuration interface Bidirectional energy meter (MID-certified) Permanent PE monitoring 6mA DC residual current monitoring Integrated residual current circuit breaker, circuit breaker Integrated 2-stage temperature monitoring. Robust and weatherproof housing Galvanized powder-coated sheet steel housing in iron mica gray (DB703) Lockable door with integrated design plate and Walther-Werke lettering Easy installation with 3-point wall mounting Max. connection of the supply line for NYY-J 1x5x10mm² Accessories included 2 RFID cards Mifare Classic 2 keys 1x AMJ module Safety instructions Circuit diagram (all-pole) Proof of routine inspection Checklist for functional testing Optionally available: Stele one-sided version: 98900026 two-sided version: 98900027 Ground piece: E8ES
