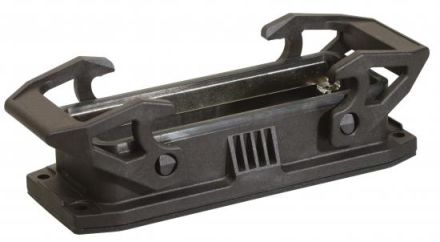

Walther K714116 B16 30mm high QVB mounting housing

In stock
SKU: 486279
€20.07
Into a basketIn the basketGo

Overview

WALTHER surface-mounted housing, plastic housing made of glass-fiber-reinforced polyamide, height 30mm, black, with cross-locking brackets and a seal made of nitrile rubber (NBR), for use in the B16, BA6, BB32, D40, DD72 and MOB16 series. Also compatible with aluminum housing. High safety is guaranteed by PE contact on both sides, fire protection class V0 according to UL94, cable strain relief according to DIN EN 50262 and protection class IP65 according to DIN 60529., Significant weight advantage over aluminum and improved environmental balance through energy-efficient production.

Property Value
Width: 114 mm
Height: 30 mm
Housing design: Built-in housing
Protection class (IP), mounted: IP65
Operating temperature: -40 to 125 °C
Locking type: Cross bar
With hinged lid: no
Corrosion-resistant: yes
With cable gland: no
UV-resistant: yes
Housing material: plastic
Flammability class of the insulating material according to UL 94: V0
Housing coating: uncoated
Bracket position: without
Depth: 53 mm
Housing color: black
With nozzle: no
With seal: yes

Characteristics

HABB16 30mm high QVB
ManufacturerWalther
HANK714116
GTIN4015609701872
Housing coatingUncoated
Operating temperatur-40 to 125 °C
Width114 mm
Flammability class of the insulating material according to UL 94V0
Housing colorBlack
Height30 mm
With hinged lidNo
Depth53 mm
UV-resistantYes
Housing materialPlastic
Walther K714116 B16 30mm high QVB mounting housing
