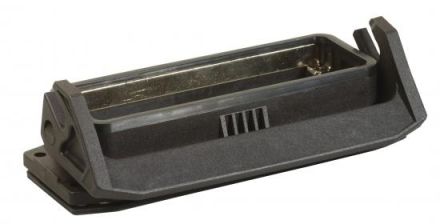

Walther K714406 B6 30mm high LVB mounting housing

In stock
SKU: 486280
€20.48
Into a basketIn the basketGo

Overview

WALTHER surface-mounted housing, plastic housing made of glass-fiber reinforced polyamide, height 30mm, black, with longitudinal locking bracket, with hinged lid, and a seal made of nitrile rubber (NBR), for use in the B6, BB10, DD24 and MOB6 series. Also compatible with aluminum housing. High safety is guaranteed by PE contact on both sides, fire protection class V0 according to UL94, cable strain relief according to DIN EN 50262, and protection class IP65 according to DIN 60529., Significant weight advantage over aluminum, and improved environmental balance through energy-efficient production.

Property Value
Width: 80.5 mm
Height: 30 mm
Housing design: Built-in housing
Protection class (IP), mounted: IP65
Operating temperature: -40 to 125 °C
Locking type: Longitudinal bracket
With hinged lid: yes
Corrosion-resistant: yes
With cable gland: no
UV-resistant: yes
Material of the housing: plastic
Flammability class of the insulating material according to UL 94: V0
Housing coating: uncoated
Bracket position: without
Depth: 53 mm
Housing colour: black
With nozzle: no
With Sealing: yes

Characteristics

HABB6 30mm high LVB
ManufacturerWalther
HANK714406
GTIN4015609702275
Housing coatingUncoated
Operating temperatur-40 to 125 °C
Width80.5 mm
Flammability class of the insulating material according to UL 94V0
Housing colorBlack
Height30 mm
With hinged lidYes
Depth53 mm
UV-resistantYes
Housing materialPlastic
Walther K714406 B6 30mm high LVB mounting housing
Walther K714406 B6 30mm high LVB mounting housing
