Walther P711710MSAL 53mm high base housing

In stock

SKU: 485997

Price on request

€32.42

€0

Overview

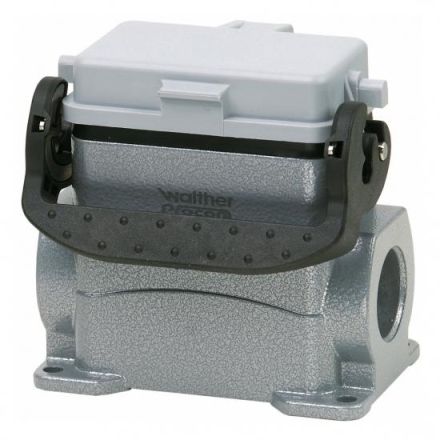

WALTHER base housing, die-cast aluminum housing, height 53mm, with longitudinal locking bracket, with two M20 connectors, and hinged lid made of aluminum, protection class: IP65, for the series B10, BB18, DD42 and MOB10

Property	Value
Width:	93 mm
Height:	53 mm
Housing design:	Base housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 up to 125 °C
Cable feed arrangement:	side
Locking type:	Longitudinal bracket
With hinged lid:	yes
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	yes
Housing material:	Aluminium
Flammability class of the insulating material according to UL 94:	V0
Housing coating:	powder-coated
Bracket position:	lower part
Depth:	52 mm
Housing color:	grey
Cable gland fastening type:	metric
With nozzle:	yes
With seal:	yes
Number of cable entries:	2
