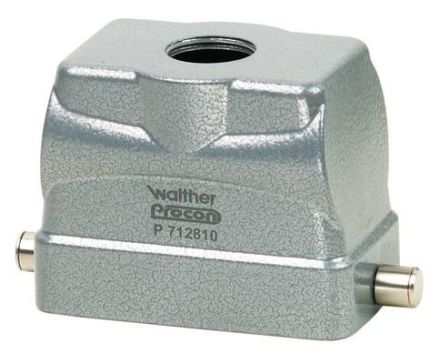

Walther P712810 10-pin 1xM20 45mm high straight grommet housing

In stock

SKU: 486037

Price on request

€10.57

€0

Overview

WALTHER sleeve housing, aluminum die-cast housing, height 56mm, with longitudinal locking cams, with an M20 threaded hole, and a straight cable entry, protection class: IP65, for the series B10, BB18, DD42 and MOB10

Property	Value
Width:	73 mm
Height:	56 mm
Housing design:	other
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	top
Locking type:	Longitudinal bracket
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	yes
Material of the housing:	Aluminium
Flammability class of the insulation material according to UL 94:	V0
Housing coating:	powder-coated
Bracket position:	without
Depth:	43 mm
Housing colour:	grey
Cable gland fastening type:	metric
With Nozzle:	no
With seal:	yes
Number of cable entries:	1
