Walther P713924 24-pin 1xM25 80mm high straight coupling housing

In stock

SKU: 485914

Price on request

€24.62

€0

Overview

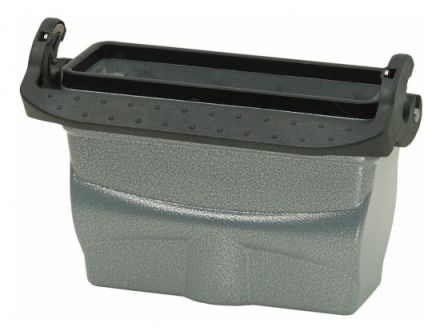

WALTHER coupling housing, aluminum die-cast housing, height 81.5mm, with a straight cable entry, with an M32 threaded hole, and longitudinal locking bracket made of plastic, protection class: IP65, for the series B24, BB46, D64, DD108 and MOB24

Property	Value
Width:	136 mm
Height:	81.5 mm
Design of the housing:	Coupling housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	top
Locking type:	Longitudinal bracket
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	yes
Material of the housing:	Aluminium
Flammability class of the insulation material according to UL 94:	V0
Housing coating:	powder-coated
Bracket position:	upper part
Depth:	43 mm
Housing colour:	grey
Cable gland fastening type:	metric
With Nozzle:	no
With seal:	yes
Number of cable entries:	1
