Walther P751424MS 6-pin 1xM25 74mm high aluminum base housing

In stock

SKU: 485786

Price on request

€17.23

€0

Overview

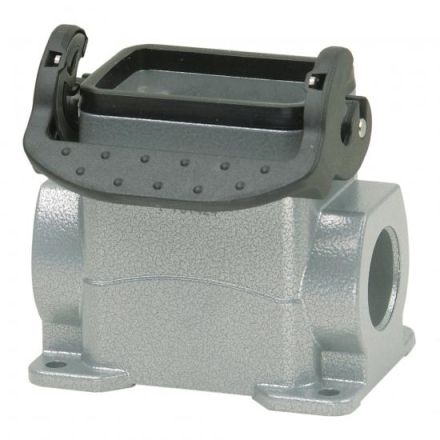

WALHTER base housing, die-cast aluminum housing, height 74mm, with longitudinal locking bracket made of plastic, and an M25 connector, protection class: IP65, for the series B6, BB10, DD24 and MOB6

Property	Value
Width:	84 mm
Height:	74 mm
Housing design:	Base housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable entry arrangement:	top
Locking type:	Longitudinal bracket
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	yes
Housing material:	Aluminum
Flammability class of the insulating material according to UL 94:	V0
Housing coating:	powder-coated
Bracket position:	lower part
Depth:	57 mm
Housing colour:	grey
Mounting type of cable gland:	metric
With nozzle:	yes
With Seal:	yes
Number of cable entries:	1
