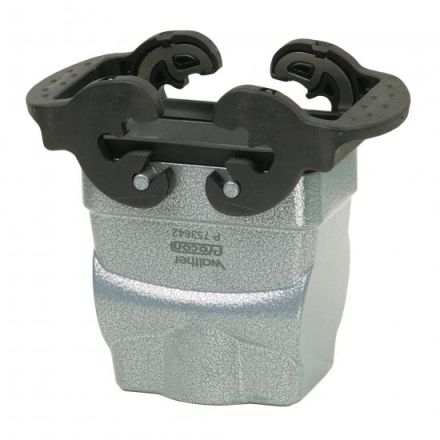

Walther P753642 10-pin 1xM25 73mm high straight coupling housing

In stock
SKU: 485787
€19.15
Into a basketIn the basketGo

Overview

WALTHER coupling housing, aluminum die-cast housing, height 77.5mm, with a straight cable entry, with an M25 threaded hole, and cross-locking bracket made of plastic, protection class: IP65, for the series B10, BB18, DD42 and MOB10

Property Value
Width: 73 mm
Height: 77.5 mm
Housing design: Coupling housing
Protection class (IP), mounted: IP65
Operating temperature: -40 to 125 °C
Cable feed arrangement: top
Locking type: Cross bar
With hinged lid: no
EMC version: no
Corrosion-resistant: yes
With cable gland: no
UV-resistant: yes
Material of the housing: Aluminium
Flammability class of the insulation material according to UL 94: V0
Housing coating: powder-coated
Bracket position: upper part
Depth: 57 mm
Housing colour: grey
Cable gland fastening type: metric
With Nozzle: no
With seal: yes
Number of cable entries: 1

Characteristics

HABP753642 10-pin 1xM25 73mm high straight
ManufacturerWalther
HANP753642
GTIN4015609604159
Number of cable entries1
Housing coatingPowder coated
Operating temperatur-40 to 125 °C
Width73 mm
Flammability class of the insulating material according to UL 94V0
EMC versionNo
Housing colorGray
Height77.5 mm
With hinged lidNo
Depth57 mm
UV-resistantYes
Housing materialAluminum
