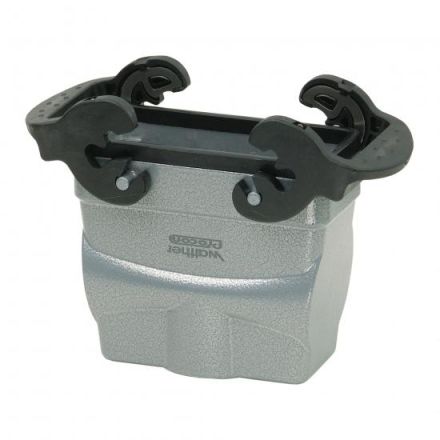

Walther P753772 16-pin 1xM32 80mm high straight coupling housing

In stock

SKU: 485915

Price on request

€25.04

€0

Overview

WALTHER coupling housing, aluminum die-cast housing, height 81.5mm, with a cable entry, with an M32 threaded hole, and cross-locking bracket made of plastic, protection class: IP65, for the series B16, BA6, BB32, D40, DD72 and MOB16

Property	Value
Width:	93.5 mm
Height:	81.5 mm
Housing design:	Coupling housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	top
Locking type:	cross bar
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	yes
Material of the housing:	Aluminium
Flammability class of the insulation material according to UL 94:	V0
Housing coating:	powder-coated
Bracket position:	upper part
Depth:	57 mm
Housing colour:	grey
Cable gland fastening type:	metric
With Nozzle:	no
With seal:	yes
Number of cable entries:	1
