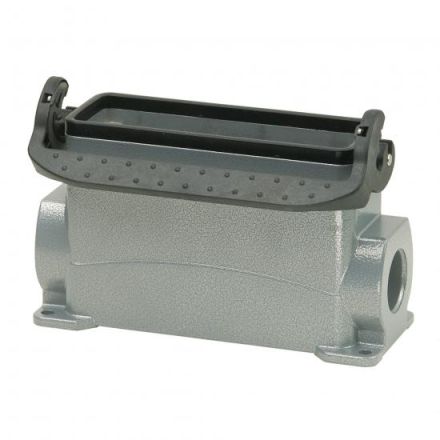

Walther P757408MS 24-pin 1xM30 84mm high aluminum base housing

In stock

SKU: 485960

Price on request

€35.57

€0

Overview

WALTHER base housing, die-cast aluminum housing, height 84mm, with longitudinal locking bracket made of plastic, and an M32 connector, protection class: IP65, for the series B24, BB46, D64, DD108 and MOB24

Property	Value
Width:	144 mm
Height:	84 mm
Housing design:	Base housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	side
Locking type:	Longitudinal bracket
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	yes
Material of Housing:	Aluminium
Flammability class of the insulating material according to UL 94:	V0
Housing coating:	powder-coated
Bracket position:	Lower part
Depth:	57 mm
Housing color:	grey
Cable gland fastening type:	metric
With nozzle:	yes
With seal:	yes
Number of cable entries:	1
