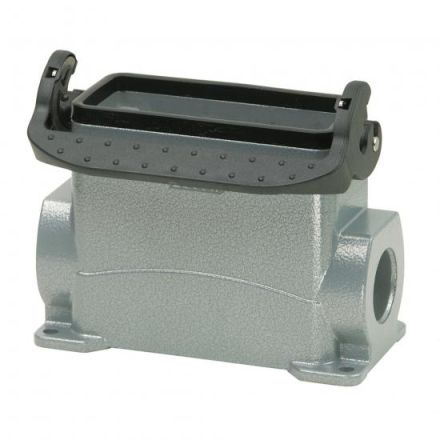

Walther P757472MS 16-pin 1xM32 84mm high aluminum base housing

In stock
SKU: 485958
€29.27
Into a basketIn the basketGo

Overview

WALTHER base housing, die-cast aluminum housing, height 84mm, with longitudinal locking bracket made of plastic, and an M32 connector, protection class: IP65, for the series B16, BA6, BB32, D40, DD72 and MOB16

Property Value
Width: 117 mm
Height: 84 mm
Housing design: Base housing
Protection class (IP), mounted: IP65
Operating temperature: -40 to 125 °C
Cable feed arrangement: side
Locking type: Longitudinal bracket
With hinged lid: no
EMC version: no
Corrosion-resistant: yes
With cable gland: no
UV-resistant: yes
Material of Housing: Aluminium
Flammability class of the insulating material according to UL 94: V0
Housing coating: powder-coated
Bracket position: Lower part
Depth: 57 mm
Housing color: grey
Cable gland fastening type: metric
With nozzle: yes
With seal: yes
Number of cable entries: 1

Characteristics

HABP757472MS 16-pin 1xM32 84mm high aluminum
ManufacturerWalther
HANP757472MS
GTIN4015609607969
Number of cable entries1
Housing coatingPowder coated
Operating temperatur-40 to 125 °C
Width117 mm
Flammability class of the insulating material according to UL 94V0
EMC versionNo
Housing colorGray
Height84 mm
With hinged lidNo
Depth57 mm
UV-resistantYes
Housing materialAluminum
Walther P757472MS 16-pin 1xM32 84mm high aluminum base housing
Walther P757472MS 16-pin 1xM32 84mm high aluminum base housing
€29.27
Into a basketIn the basketGo
