Walther T700620 A3/A4 25.5mm high base housing

In stock

SKU: 486180

Price on request

€9.12

€0

Overview

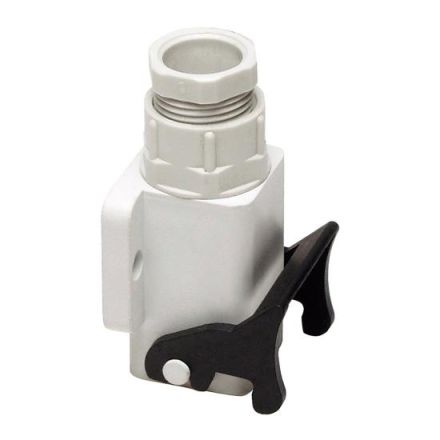

WALTHER base housing, glass fiber reinforced polyamide housing, height 25.5 mm, light gray (RAL 7035), with longitudinal locking bracket made of polyamide, and an M20 threaded hole, housing open at the flange, protection class: IP65, for the A3, A4, A5, D7 and D8 series

Property	Value
Width:	24 mm
Height:	25.5 mm
Housing design:	Base housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	side
Locking type:	Longitudinal bracket
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	yes
Housing material:	Plastic
Flammability class of the insulating material according to UL 94:	V0
Housing coating:	uncoated
Bracket position:	Lower part
Depth:	40.5 mm
Housing color:	gray
Cable gland fastening type:	metric
With nozzle:	no
With seal:	yes
Number of cable entries:	1
