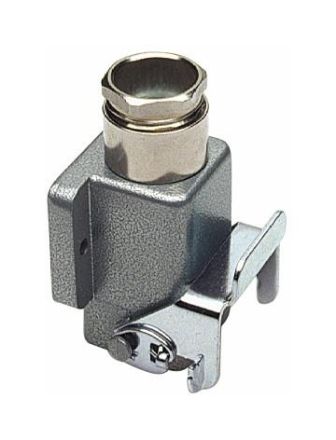

Walther T701003 A3/A4 25.5mm high base housing

In stock

SKU: 486553

Price on request

€11.41

€0

Overview

WALTHER base housing, zinc die-cast housing, height 25.5mm, with longitudinal locking bracket made of galvanized steel, and an M20 threaded hole, closed housing base, protection class: IP65, for the A3, A4, A5 and D8 series

Property	Value
Width:	24 mm
Height:	25.5 mm
Housing design:	Base housing
Protection class (IP), mounted:	IP65
Operating temperature:	-40 to 125 °C
Cable feed arrangement:	side
Locking type:	Longitudinal bracket
With hinged lid:	no
EMC version:	no
Corrosion-resistant:	yes
With cable gland:	no
UV-resistant:	yes
Material of Housing:	zinc
Flammability class of the insulating material according to UL 94:	V0
Housing coating:	powder-coated
Bracket position:	lower part
Depth:	40.5 mm
Housing colour:	other
Mounting type of cable gland:	metric
With nozzle:	no
With seal:	yes
Number of cable entries:	1
